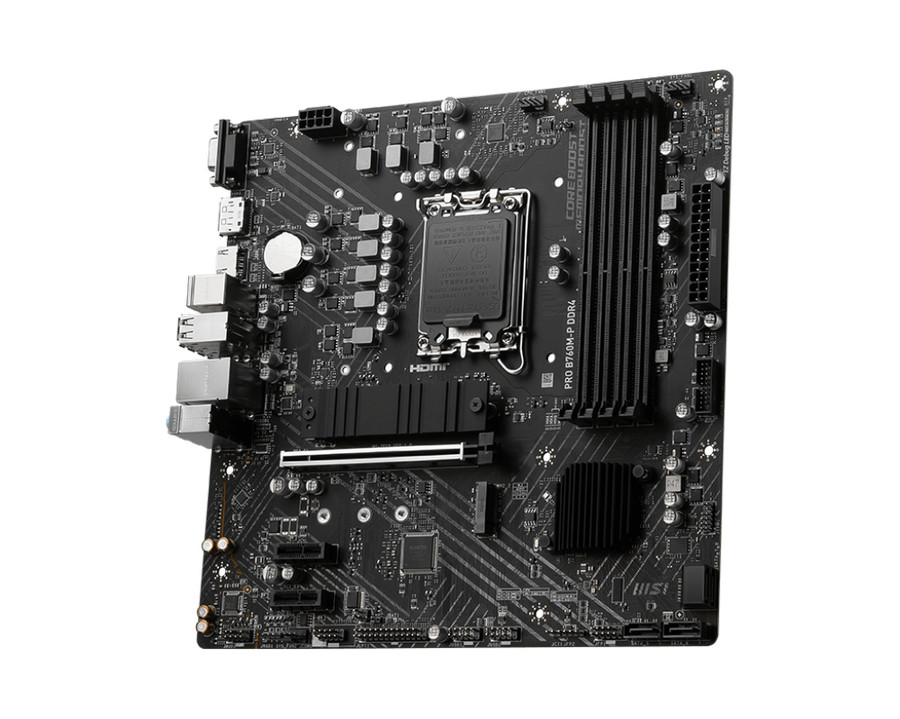

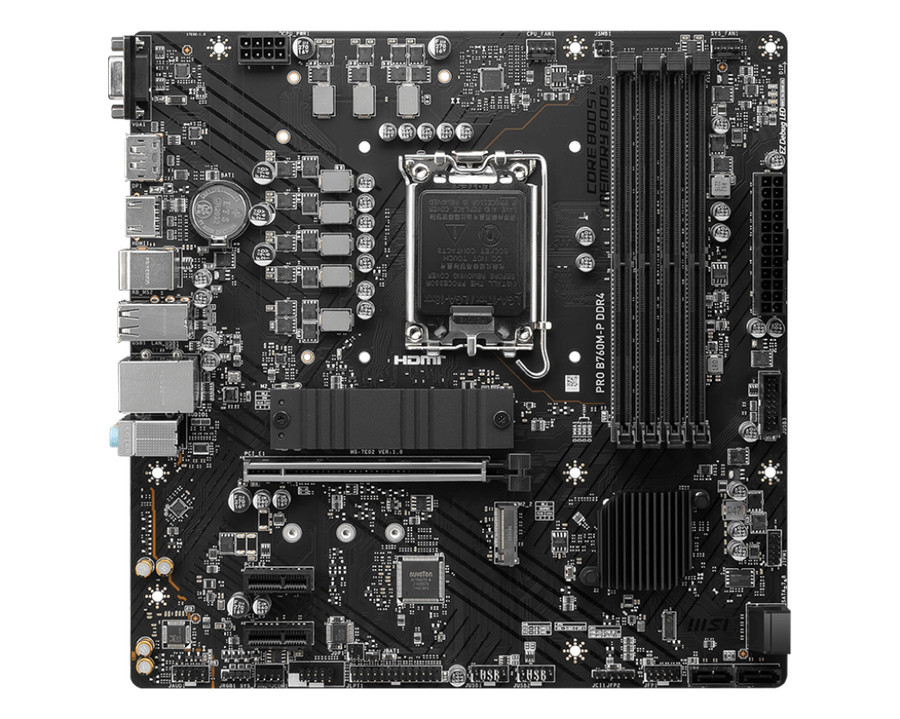

CHIPSET
INTEL B760

CPU SUPPORT
Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700

MEMORY
4x DDR4, Maximum Memory Capacity 128GB
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)

ONBOARD GRAPHICS
1x HDMI
1x DisplayPort
1x VGA
Support HDMI 1.4, maximum resolution of 4K 30Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT
1x PCI-E x16 slot
2x PCI-E x1 slot
PCIE1 PCIe 4.0 supports up to x16 (From CPU)
PCIE2 PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)

STORAGE
2x M.2 slot
M.21 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.22 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G port

SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

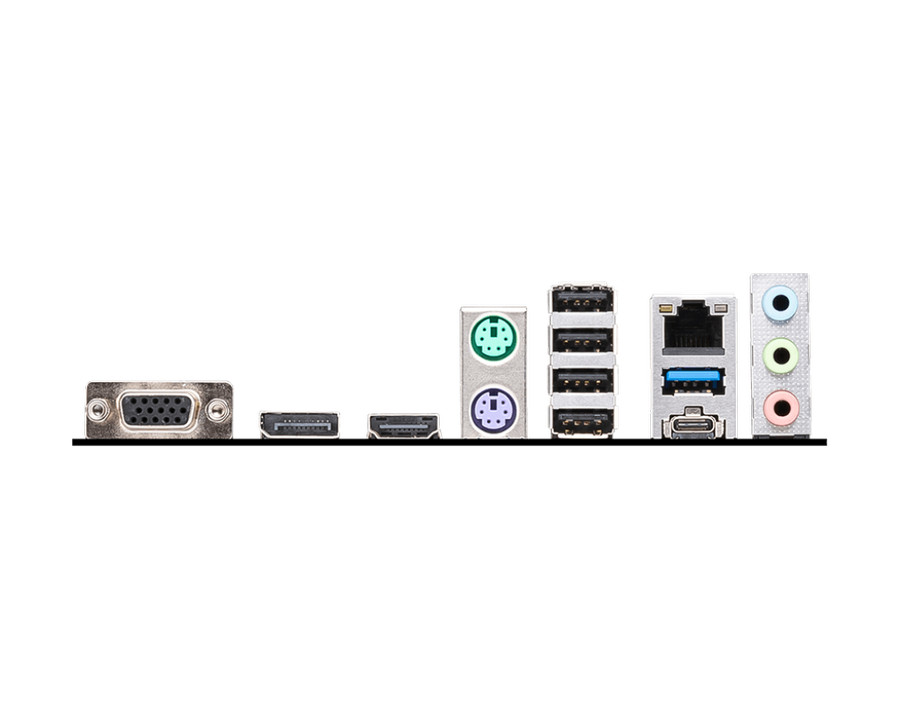

USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type C (Rear)

LAN
Realtek RTL8111H Gigabit LAN
