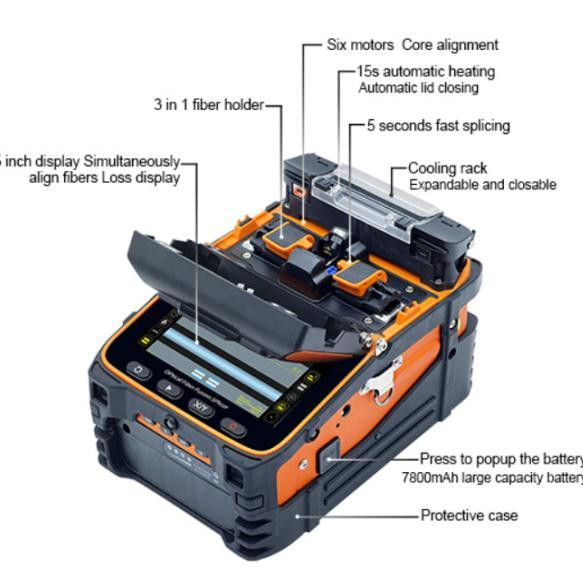

MEREK: SIGNAL FIRE ORIGINAL
TYPE: AI-9
GARANSI : RESMI 6 Bulan
Jumlah Motor: six motor / 6 motor ( Special For Backbone )

- BASIC PARAMETER -
1. Fiber alignment Core/cladding
2. Motor number 6 motors
3. Splicing time 5s
4. Heating mode 15s， dapat disesuaikan sesuai dengan lingkungan eksternal
5. Fiber type Single-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible fiber fusion;
6. The cladding diameter 80-150μm
7. Splicing loss 0.02dB（SM）、0.01dB（MM）0.04dB（DS/NZDS）
8. Splicing mode Automatic focusing core alignment, conventional/high precision welding
9. Splicing way Automatic, semi-automatic
10. Fiber holder Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cable
11. VFL The machine comes with: power: 15mW, 2Hz flashing and steady on mode
12. OPM Wavelength: 850nm; 1300nm, 1310nm, 1490nm, 1550nm, 1625nm/Measurement range: -50+26dbm Absolute error: <0.3dB (-50dbm ~+3dBm range)
13. Battery capacity 7800mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 260 cores
14. Magnification 320x (X or Y axis single display) 200x (x and Y axis dual display)
16. Power supply Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery
